Hot rolled sheet – thin and pickled

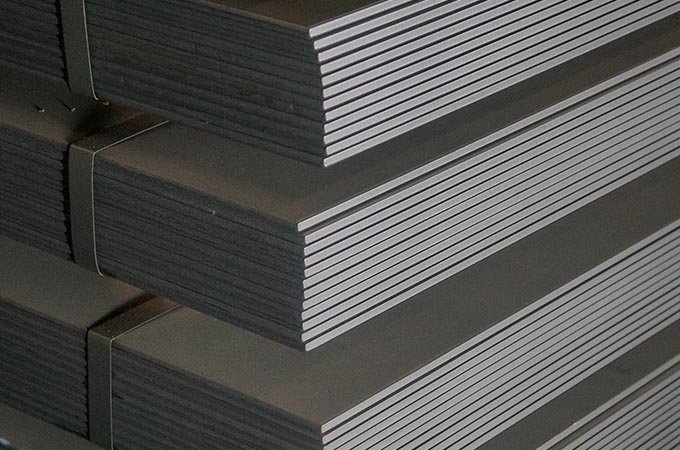

Hot rolled sheet

Structural sheet (EN10025-2:2004)

Grades:
  • S235JR, JO, J2+N
  • S275JR, JO, J2+N

  • S355JR to K2

Dimensions:

Thickness: 1,50 mm-20,00 mm

Coils: width of up to 2000 mm

Strips:
thickness 1,80 mm-12,50 mm
of at least 110 mm width
Plates:
standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000/6000 mm, 2000 x 3000/6000 mm
delivery of non-standard formats also possible

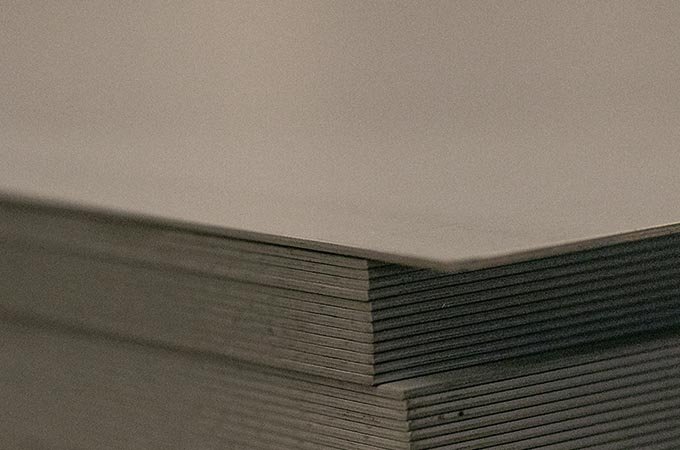

Microalloyed sheet (EN10149)

Grades:
  • S380MC

Dimensions:

Thickness: 3,00 mm-12,00 mm

Coils: of up to 1500 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000/6000 mm
delivery of non-standard formats also possible

Boiler sheet (EN10028)

Grades:
  • P235GH
  • P265GH
  • P355GH-P355NH

Dimensions:

Thickness: 2,00 mm-15,00 mm

Coils: of up to 2000 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x3000/6000 mm, 2000 mm x 3000/6000 mm
delivery of non-standard formats also possible

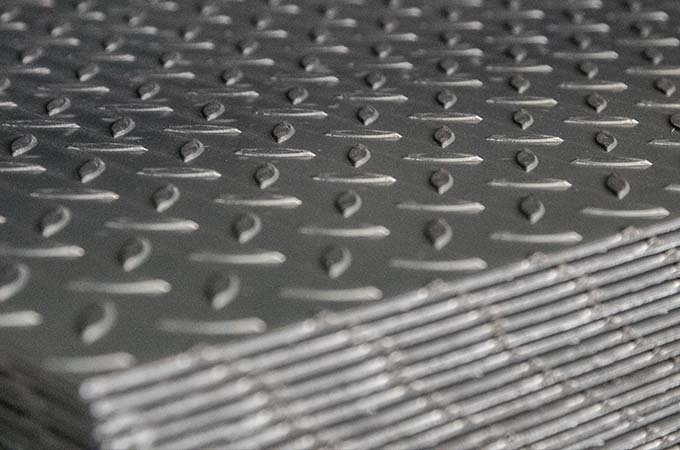

Tread plate (EN10051)

Grades:
  • S235JR
  • S275JR

Dimensions:

Thickness: 3,00 mm-10,00 mm

Coils: of up to 1500 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000/6000 mm
delivery of non-standard formats also possible

Hot rolled pickled sheet

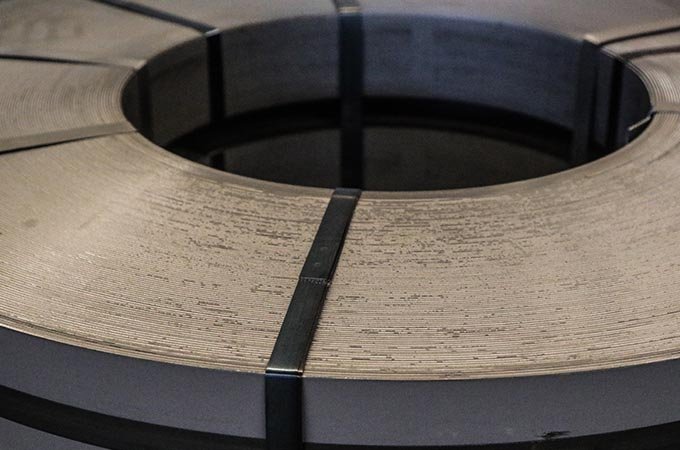

Sheet for cold forming (EN10111)

Grades:
  • DD11 pickled

  • DD12 pickled

  • DD13 pickled

  • DD14 pickled

  • DD15 pickled*

Dimensions:

Thickness: 1,50 mm-15,00 mm

Coils: of up to 1500 mm width

Strips: of at least 20 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000 mm; delivery of non-standard formats also possible

Microalloyed pickled sheet for cold forming (EN10149-2)

Grades:

  • S315MC pickled

  • S355MC pickled

  • S420MC pickled

  • S460MC pickled

  • S500MC pickled

Dimensions:

Thickness: 2,00 mm-12,00 mm

Coils: of up to 1500 mm width

Strips: of at least 20 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000 mm; delivery of non-standard formats also possible

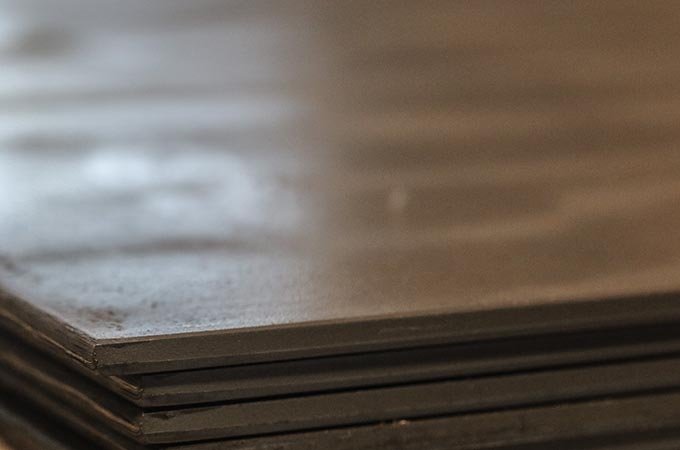

Structural pickled sheet (EN10025-2)

Grades:

  • S235JR to J2 pickled

  • S275JR to J2 picked

  • S355JR to K2 pickled

Dimensions:

Thickness: 2,00 mm-6,00 mm

Coils: of up to 1500 mm width

Strips: of at least 20 mm width

Plates: standard formats 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000 mm; delivery of non-standard formats also possible
